Product Details:
|
| Type: | 2.4GHz & 5GHz Antenna | Frequency Range: | 698-960 / 1710-2170 / 2500-2700MHz |
|---|---|---|---|
| Gain(dBi): | 4-6 | Impedance: | 50 Ohm |
| VSWR: | 1.5 :1Max | Polarization: | Linear Vertical |
| Cable Type: | RG-174 | Size: | 66*300 Mm |
| Business Type: | Manufacture | Radiation Pattern: | Omni-directional |
| Port: | Shenzhen | ||
| Highlight: | 5GHz 4G 5G LTE Antenna,2.4GHz 4G 5G LTE Antenna,2.4GHz Magnetic Tv Antenna |
||
High Quality Signal Booster Wide-Band Magnetic Base 2.4GHz & 5GHz Wifi Indoor Mobile Antenna

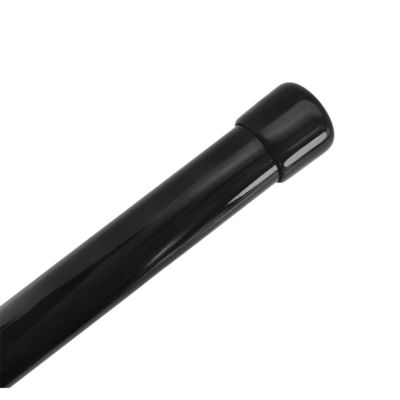

* 2020 Fashion Strong Magnetic Base Fiberglass rod shape with the function of 4G LTE Antennas and Wifi
frequency Optional .
* Can be made it Dual-Band of 4G & WIFI use for Mobile Phone, Computer and Camera and some related
equipments.
* Easy Installations: You can choose the " L " shape bracket mounting to fix the antenna on the car or home ,

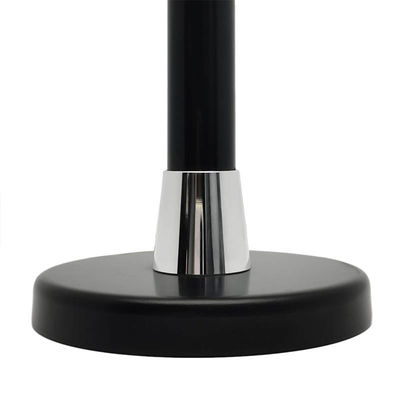

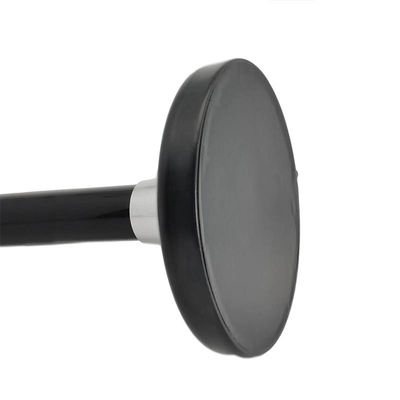

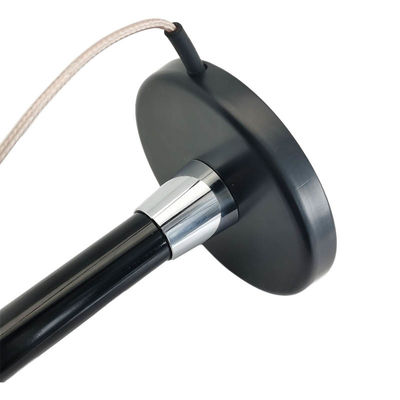

or you can choose the magnetic base to absorbed on the steel.
* Outdoor and Indoor waterproof and Anti-UV design can be use on any application scenarios.
Product Details
* Customized Frequency for you, with optional Connector , Cable and installation methods.
* Omni-Directional reception will show you an unique high performance 4G LTE or WIFI experience.
Specification
| Product Name: | 4G Antenna |
| Frequency Range: | 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz or 2.4 GHz / 5.8 GHz |
| Gain (dBi) : | 15 dBi |
| V.S.W.R : | 1.5 : 1 Max |
| Impedance : | 50 Ohm |
| Radiation Pattern : | Omni-directional |

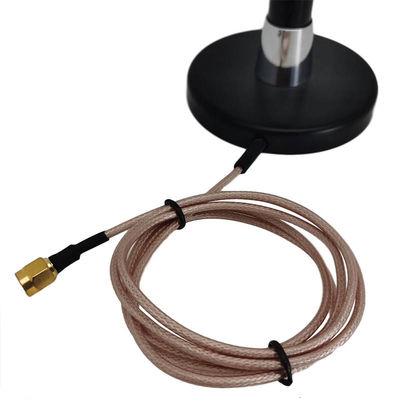

| Cable Type : | RG-174 (Optional) |

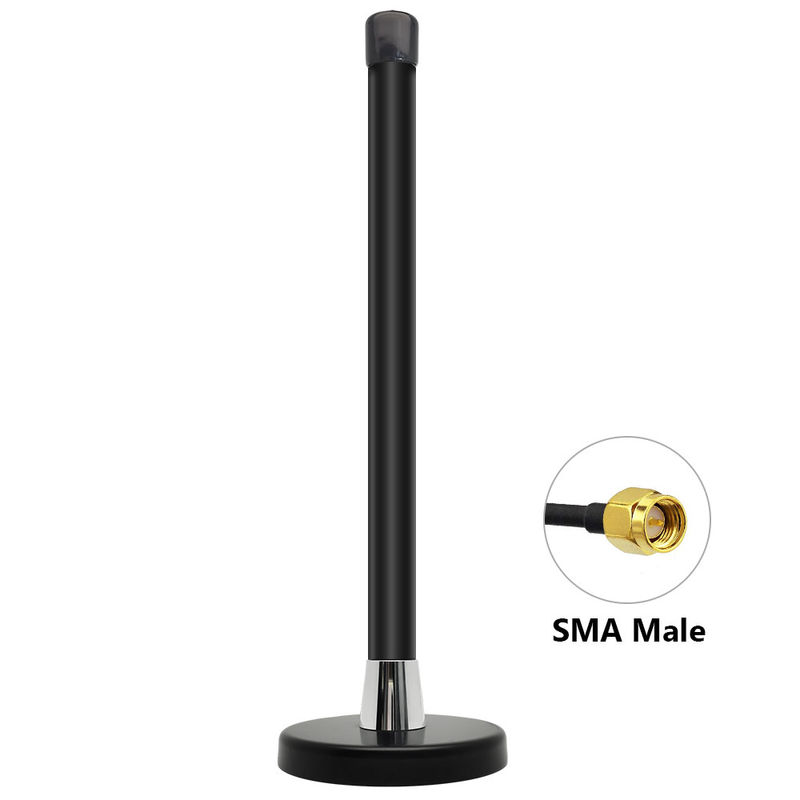

| Connector : | S MA(M) (Optional) |
| Size (mm) : | Φ 66 * 300 mm |
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
