Product Details:
|
| Product Name: | 4G 5G Base Station Antenna | Frequency Range: | 1710-2700MHz |
|---|---|---|---|
| Polarization: | Linear | VSWR: | ≤1.5 |
| Connector: | N-K | Size: | 1200*160*70mm |
| Highlight: | 4G 5G base station antenna,plate directional antenna,parking dock sector antenna |
||

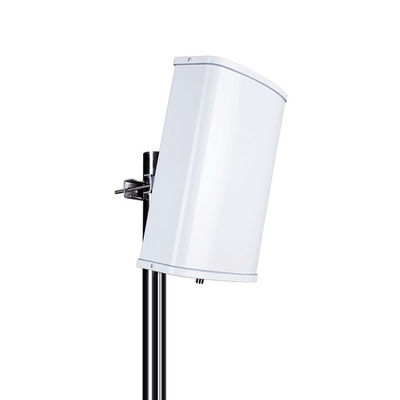

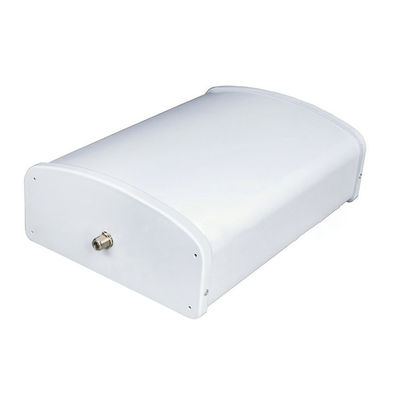

2G 3G 4G 5G 1710-2700MHz Outdoor Patch Panel Antenna 17dbi High gain Dual Band Mimo Antenna Base Station Antenna
|
Specifications
|
|
|
Product Name
|
4G 5G Base Station Antenna
|
|
Brand
|
Baiao / OEM
|
|
Model Number
|
BIO-G601
|
|
Frequency Range
|
1710-2700MHz
|
|
Gain
|
17±0.5dBi
|
|
Horizontal Beamwidth
|
65±5 o
|
|
Vertical Beamwidth
|
8±3o
|
|
F/B Ratio
|
≥25dB
|
|
VSWR
|
≤1.5
|
|
Isolation
|
≥28dB
|
|
Impedance
|
50 Ω
|
|
Polarization
|
Vertical polarization
|
|
Max. Power
|
100W
|
|
Connector
|
N-K
|
|
Lightning Protection
|
Dc ground
|
|
Prodcut Specifications
|
|
|
Product size
|
1200x160x70mm
|
|
Weight
|
5.2kg
|
|
Rated Wind Velocity
|
36.9 m/s
|
|
Reflector material
|
Aluminium/Copper
|
|
Operational Humidity
|
< 95
|
|
Radome Color
|
off-white
|
|
Radome material
|
PVC
|
|
Operating temperaturec
|
40～55o
|
|

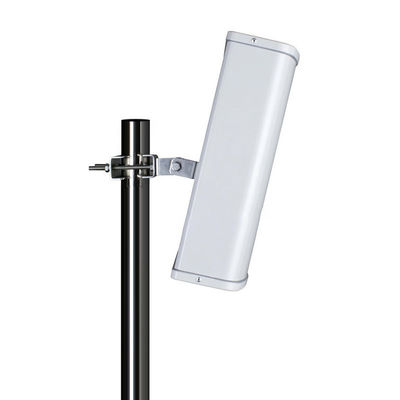

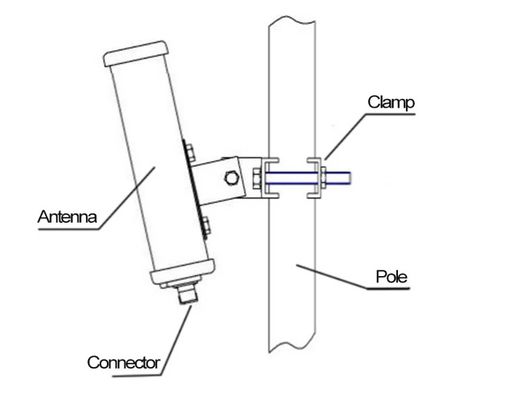

Suitable pole diameter
|
￠40～￠80
|
|
Packing
|
PE bag / Color box / Customization
|
|
Certificate
|
CE / FCC / RoHs / REACH
|
|
Do you want to know more types of products? Please click here
|
|
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.
We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services
FAQ
Q : Do you offer samples?
A : Yes, we offer samples for testing.
Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the
material for free.
